RGB color model

Lore & Background

The RGB color model is based on the Young–Helmholtz theory of trichromatic color vision, developed by Thomas Young and Hermann von Helmholtz in the early to mid-nineteenth century, and on James Clerk Maxwell's color triangle elaborated around 1860. The theory found that red, green, and violet (instead of blue) make up all sensations of color. The RGB model is additive: three light beams (red, green, blue) are superimposed, and their emission spectra add wavelength for wavelength. When all three are at full intensity and balanced, the result is white; zero intensity gives black. Equal intensities produce shades of gray. The model is device-dependent, meaning the same RGB value can appear differently on different devices without color management.

Reader's Guide

The RGB color model is the cornerstone of modern electronic imaging, underpinning the operation of televisions, computer monitors, digital cameras, scanners, and video projectors. Its additive nature—where light beams are superimposed—contrasts with subtractive models like CMYK used in printing. The choice of red, green, and blue primaries is rooted in human physiology: the cone cells of the retina respond most to long (yellowish), medium (green), and short (violet) wavelengths, and the RGB primaries maximize differences in cone responses to create a large color triangle. However, not all colors can be reproduced; only those within the triangle defined by the primaries' chromaticities. The model itself does not define absolute colors; when exact chromaticities are specified, it becomes an absolute color space such as sRGB or Adobe RGB. The model's device dependence means that consistent color reproduction across devices requires color management.

Did You Know?

• The RGB color model is based on the Young–Helmholtz theory of trichromatic color vision, which originally identified red, green, and violet as the primary colors.

The Additive Mixing Principle

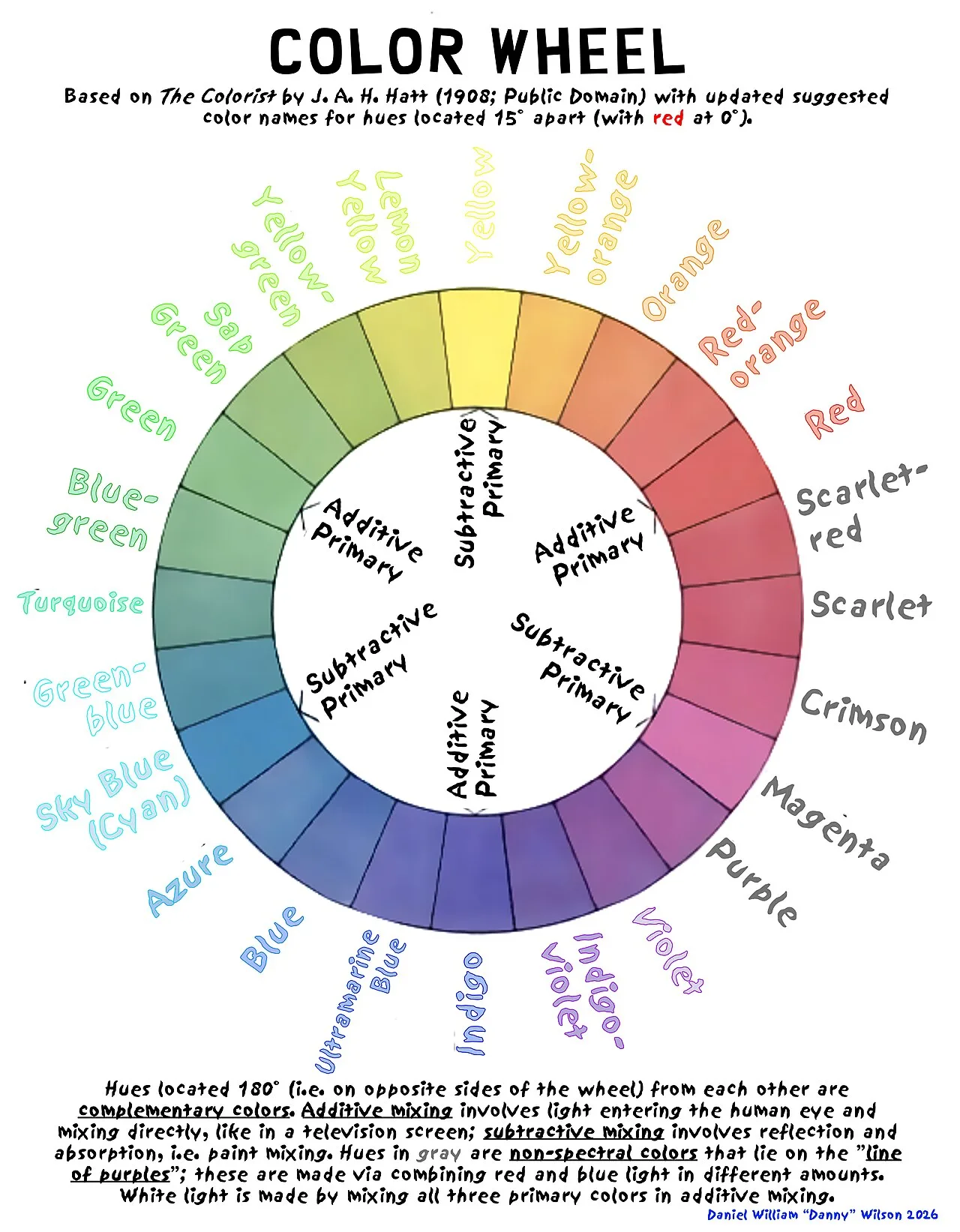

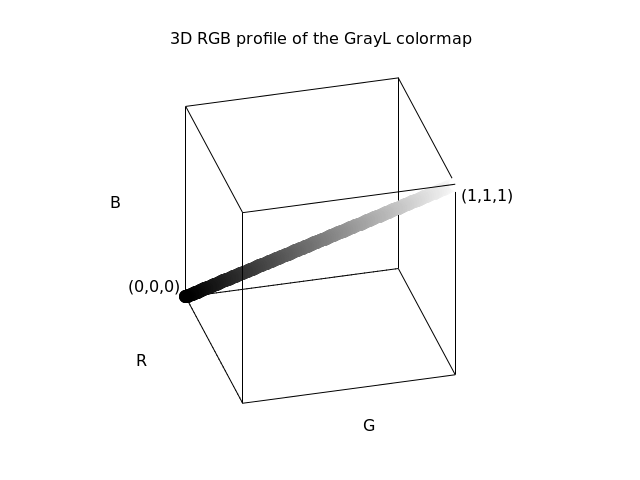

The RGB model operates on a fundamentally additive logic: when red, green, and blue light beams are superimposed—whether emitted from a dark screen or reflected off a white one—their emission spectra combine wavelength by wavelength to produce a new, resulting spectrum. This stands in direct opposition to subtractive color mixing, where pigments and dyes filter light rather than emit it. In the additive framework, zero intensity across all three components yields black (the absence of light), while full intensity on each produces white. Equal intensities generate shades of gray, and unequal intensities create saturated hues. When two primaries share the strongest intensity, the result is a secondary color: cyan from green and blue, magenta from blue and red, yellow from red and green. Each secondary color serves as the complement of the remaining primary. The model itself, however, does not prescribe absolute chromaticities for its primaries; only when specific chromaticities are fixed does it become an absolute color space like sRGB or Adobe RGB.

The Biology Behind the Choice of Primaries

The selection of red, green, and blue as additive primaries is rooted in the physiology of human vision. Effective primaries are those that maximize the differential response among these three cone types, thereby creating a large color triangle in chromaticity space. The brain interprets this asymmetric activation as the perception of orange. This differential signaling mechanism is what allows humans to distinguish a wide gamut of hues, with particular acuity in the green-to-orange region. Importantly, even with three well-chosen primaries, additive mixing can only reproduce colors that fall within the triangle defined by their chromaticities; colors outside that boundary remain unreachable.

Device Dependency and the Need for Color Management

A critical limitation of the RGB model is its inherent device dependency. Because the physical color elements—phosphors, dyes, or other emitters—differ from one manufacturer to another, and can even drift within a single device over time, a given set of RGB values will not necessarily produce the same perceived color on every screen or sensor. This means that without some form of color management, an RGB triplet is only a relative specification, tied to the particular hardware interpreting it. The model itself does not define what red, green, or blue mean in absolute colorimetric terms; the mixing results are always relative to whatever primaries the device employs. Only when the exact chromaticities of the three primaries are explicitly fixed does the model transition into an absolute color space, such as sRGB or Adobe RGB, providing a consistent reference that transcends individual hardware. This distinction between relative and absolute specification is central to understanding why color reproduction across different displays, cameras, and printers demands careful calibration.

Practical Applications and the RGB–Subtractive Divide

The RGB model serves as the foundational framework for sensing, representing, and displaying images across electronic systems. Typical input devices include color television cameras, video cameras, image scanners, and digital cameras, all of which capture light and decompose it into red, green, and blue components. On the output side, the model underpins an enormous range of display technologies: CRT televisions, LCD panels, plasma screens, OLED displays, quantum-dot systems, computer and mobile phone screens, video projectors, multicolor LED arrays, and large-format installations like the Jumbotron. Notably, color printers do not operate on RGB principles; they are subtractive devices that typically employ the CMYK model, where inks absorb rather than emit light. Before the electronic era, the theoretical groundwork for additive color mixing was already well established, grounded in the science of human color perception. The model has also found applications in conventional photography and colored lighting, extending its reach well beyond the digital displays most people associate with it today.
